New Floor Plan
Compass AWD23XT
You must have specific consent permissions enabled in order to add items to your Favorites.

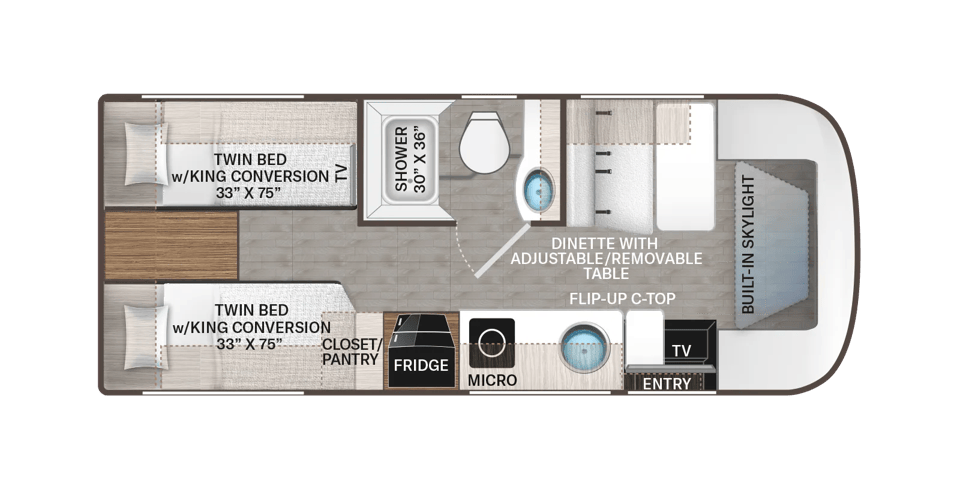

Rear Twin to King Bed, Mid Bath
23XT
- Length
- 24'-3"
- Height
- 11'
- Fuel Type
- Gasoline
- Automotive
- Ford
- Sleeping Capacity
- 2
- Exterior Storage
- 73.3 cu. ft.
Compass AWD 23XT
Specifications
- Exterior Length (W/O Ladder)
- 24'-3"
- Exterior Height (W/A/C)
- 11'
- Exterior Width (W/O Mirrors)
- 7'-6"
- Exterior Storage
- 73.3 cu. ft.
- Awning Size
- 14'
- Interior Height
- 6'-8"
- Fresh Water
- 41 gal
- Gray Water
- 37 gal
- Waste Water
- 20 gal
- Water Heater
- Tankless
- GVWR
- 11000 lbs
- GCWR
- 15000 lbs
- Wheel Base
- 13'
- Seat Belt Capacity
- 4
- Sleeps
- 2
- Chassis
- Ford
- Engine
- 3.5L V6 EcoBoost® Turbo
- Horsepower & Torque
- 310 HP & 400 lb-ft Torque
- Hitch Weight Rating
- 5000 lbs
- Fuel Type
- gasoline
- Fuel Capacity
- 25 gal
Standards and Options
Standard
Optional
Model Specific
Standard
Optional
Model Specific
1” Fresh Water Tank Drain
3,000-watts Inverter
30-amp Detachable Shoreline Power Cord
360° Siphon® RV Holding Tank Vent Cap
400-watts Solar Charging System with Power Controller
50 State 4.0 kW Gas Generator
Additional Battery Housing for up to Four (4) Additional Batteries
Automatic Shoreline-to-Generator Transfer Switch
Automatic Transfer Switch with Power Protection
Battery Disconnect Switch
Black Tank Flush System
Camp-Side Exterior Outlet Including USB Ports
Camp-Side Exterior Spray Port
Ceiling Ducted 15,000 BTU Air Conditioner with Soft Start & Power Saver
Exterior Solar Port
Holding Tanks with Heat Pads
Outside Shower
Rapid Camp+™ Multiplex Wiring Control System with 7” Touchscreen & Bluetooth®
Two (2) 12-volt Lithium House Batteries
Ultra-Compact Hydronic Furnace & Water Heater
Whole Coach Water Filter Prep
Standard
Optional
Model Specific
12-volt DC Double Door Refrigerator
Convection Microwave Oven with Air Fryer
Countertop Extension
Kitchen Waste Basket
Large Under Mount Stainless Steel Single Bowl Sink with Cover & Single Handle Kitchen Faucet with Pull-Down Sprayer
Protective Cover & Task Lighting Above Cooktop
Removable Single Burner Induction Cooktop
Standard
Optional
Model Specific
32” Smart TV in Bedroom
32” Smart TV in Living Area
32" Smart TV in Bedroom
Cable TV Ready
Digital TV Antenna
Secondary TV Prep in Bedroom
Living Area Power Charging Center for Electronics with Net
Satellite Mounting Backer in Roof
Winegard® Digital TV Antenna with 4G/5G Prep
Standard
Optional
Model Specific
5,000 lbs Trailer Hitch with 7-Pin Connector
All-Wheel Drive (AWD) System
Black Frameless Windows
Collapsible Exterior Ladder Prep
Entry Door with Deadbolt Lock
Exterior Grab Handle
Exterior MEGA-Storage Compartment with Outlet and Access from Driver Side, Passenger Side, and Rear
Fiberglass Front Cap with Skylight & Interior Power Shade
Flush Mount Radius Compartment Doors
Ford® 10R80: 10-Speed Automatic Transmission
Ford® Safety Systems - Lane Departure Warning, Pre-Collision Assist, Auto High Beam Headlights, TPMS, AdvanceTrac® with RSC®, Hill Start Assist & Rain Sensing Windshield Wipers
Ford® Transit® Chassis - 3.5L V6 Eco Boost® Turbo Gas Engine with 310HP & 400 lb-ft Torque
FordPass™ Connect
Front & Rear SUMOSPRINGS®
Full-Body Paint Package IPO HD-MAX® Exterior with Graphics Package
One-Piece Fiberglass Front Cap with Integrated Wing Walls
Pet-Link™ Multi-Purpose Tie-Down
Power Patio Awning with Integrated LED Lighting
Premium One-Piece Exterior Roofing
Rotocast Storage Compartments with Lights
TPO Upper Rear Cap with Bumper
Vacu-Bond Laminated Roof, Walls & Floor with Block Foam Insulation
Welded Tubular Aluminum Roof & Sidewall Cage Construction
Welded Tubular Steel Floor
Standard
Optional
Model Specific
80” Interior Ceiling Height
Ceiling Ducted Air Conditioning System
Fire Extinguisher
Full Extension Soft Close Metal Ball-Bearing Drawer Guides
Hard Vinyl Ceiling
High-Gloss Euro-Style Cabinetry with Complementary Cabinet Door Hardware & Hidden Hinges
Leatherette Half-Dinette Booth with Two (2) Three-Point Seat Belts
LED Lighting
Metal Entry Grab Handle
Passenger Seat Belts in Select Areas
Pop-Up Countertop Outlet with Electronics Charging Station
Pressed Laminate Countertops
Residential Vinyl Flooring
Rubber Tread Entry Steps with Lighted Step Well
Smoke, LP Gas & Carbon Monoxide Detectors
Wall Cubby with Net & USB Charging Port
Cassette Shades with Integrated Pleated Blinds
Soft Close Cabinet Door Hinges
Standard
Optional
Model Specific
Aggressive Matte Black Aluminum Wheels
AM/FM Dash Radio with SYNC® 4, Navigation & 8” Color Multi-Function Display
Blind Spot Monitoring System
Deluxe Power Exterior Mirrors
Drink Holders
Driver & Passenger Air Bags
Keyless Cab Entry Key Fob
LED Taillights
Map Light
Off-Road Inspired Fender Flares & Front Grill with Additional LED Clearance Lights
Power Windows & Door Locks
Rear View Mirror with Backup Monitor
Reclining/Swivel Leatherette Captain's Chairs
Runner Carpet Between & Behind Cockpit Seats
Running Board Entry Steps for Driver & Passenger
SiriusXM® Tuner & Antenna
Sun Visors
Three-Point Seat Belts for Driver & Passenger
Telescoping Leather Steering Wheel with Audio Control
Valve Stem Extenders
Windshield Privacy Curtain
Standard
Optional
Model Specific
Bedroom USB Power Charging Center for Electronics
Designer Headboard
Porcelain Foot Flush Toilet
Power Bath Vent
Robe Hook(s) Inside Bathroom
Shower with Curved Anti-Microbial Shower Curtain
Skylight in Shower
Stainless Steel Bathroom Sink
Two (2) Twin Sofa Beds with Fitted Covers & Full Unit Width Conversion
